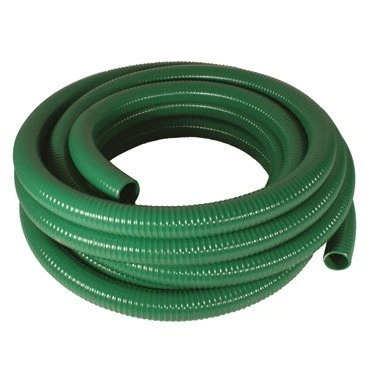

Medium Duty Green Suction & Delivery Hose 20 Mtr Coil

Medium Duty Green Suction & Delivery Hose 20 Mtr Coil

Note, some sizes available to order only. If required size shows out of stock please enquire.

Medium Duty, suction and delivery hose suitable for use with a wide variety of uses, in agriculture

and industry and many other areas

Strong flexible and smooth plasticized PVC tubing

Shock resistant PVC spiral strengthening

Temperature range from -5 c to +60 c

Safety factor of 3 – 1

Hose coils may be shipped separately from other items ordered in the same order.

Available is sizes 1” to 6” ID

Part Number	(Hose	Size)	(Working	Pressure)	(Bend Radius)	Weight	Inner/Outer
	Inches	mm	PSI	Bar	mm	Kg’s / Mtr	size  mm/mm
GMD-25-20	1”	25mm	135	9	140	0.3	25/30
GMD-32-20	1 1/4”	32mm	120	8	150	0.39	32/37
GMD-38-20	1 1/2”	38mm	120	8	180	0.52	38/45
GMD-51-20	2”	51mm	105	7	220	0.8	51/57
GMD-76-20	3”	76mm	90	6	320	1.38	76/85
GMD-102-20	4”	102mm	75	5	400	2.22	102/113
GMD-127-20	5”	127mm	60	4	600	3.00	127/142
GMD-152-20	6”	152mm	45	3	800	4.00	152/167



• • Weight

    9 kgs

  • SKU

    GMD-25-20

• Hose Size

  1” x 20 mtr Coil – GMD-25-20, 1 1/4” x 20 mtr Coil – GMD-32-20, 1 1/2” x 20 mtr Coil – GMD-38-20, 2” x 20 mtr Coil – GMD-51-20, 3” x 20mtr Coil – GMD-76-20, 4” x 20 mtr Coil – GMD-102-20, 5” x 20 mtr Coil – GMD-127-20, 6” x 20 mtr Coil – GMD-152-20
