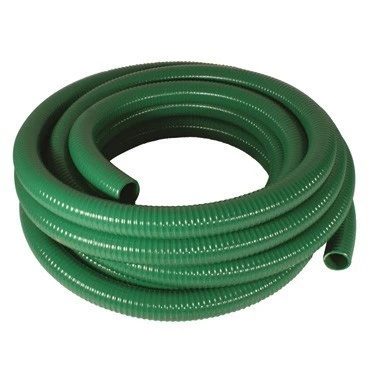

Medium Duty Green Suction & Delivery Hose 10 Mtr Coil

Medium Duty Green Suction & Delivery Hose 10 Mtr Coil

Medium Duty, suction and delivery hose suitable for use with a wide variety of uses, in agriculture

and industry and many other areas

Strong flexible and smooth plasticised PVC tubing

Shock resistant PVC spiral strenthening

Temperature range from -5 c to +60 c

Safety factor of 3 – 1

Hose coils may be shipped seperately from other items ordered in the same order.

Available is sizes 1” to 6” ID

Part Number	(Hose	Size)	(Working	Pressure)	(Bend Radius)	Weight	Inner/Outer
	Inches	mm	PSI	Bar	mm	Kg’s / Mtr	size  mm/mm
GMD-25-10	1”	25mm	135	9	140	0.3	25/30
GMD-32-10	1 1/4”	32mm	120	8	150	0.39	32/37
GMD-38-10	1 1/2”	38mm	120	8	180	0.52	38/45
GMD-51-10	2”	51mm	105	7	220	0.8	51/57
GMD-63-10	2 1/2”	63mm	105	7	280	1.04	63/070
GMD-76-10	3”	76mm	90	6	320	1.38	76/85
GMD-102-10	4”	102mm	75	5	400	2.22	102/113
GMD-127-10	5”	127mm	60	4	600	3.00	127/142
GMD-152-10	6”	152mm	45	3	800	4.00	152/167



• • Weight

    3 kgs

  • SKU

    GMD-25-10

• Hose Size

  1” x 10 mtr Coil- GMD-25-10, 1 1/4” x 10 mtr Coil – GMD-32-10, 1 1/2” x 10 mtr Coil – GMD-38-10, 2” x 10 mtr Coil – GMD-51-10, 2 1/2” x 10 mtr Coil – GMD-63-10, 3” x 10mtr Coil – GMD-76-10, 4” x 10 mtr Coil – GMD-102-10, 5” x 10 mtr Coil – GMD-127-10, 6” x 10 mtr Coil – GMD-152-10
