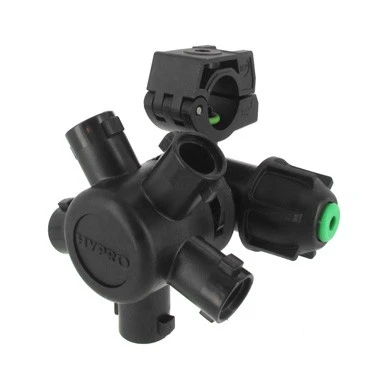

Hypro Proflo EF3 5 Way Nozzle Body, VITON DCV
Original price was: £13.14.£9.20Current price is: £9.20.
- Unbeatable Quality, Unbeatable Value
- Unbeatable Quality Guaranteed
- No-Questions-Asked Returns
- Discover a world of quality products.
Hypro Proflo EF3 5 Way Nozzle Body, Viton DCV
These nozzle holders come fitted with the Green coloured Diaphragm Check Valve and a GREEN coloured DCV rubber, that has a centre locating pip, rated at 0.55 Bar for instant shut off
These nozzle bodies are manufactured from Polyacetal and Nylon for performance and durability
They all have hinged top Clamps to fit all common pipe sizes : 1/2″, 3/4″, 1″, nominal bore sprayline or pipe
They have a 10mm spigot, with an operating pressure of upto 20 bars
They also come complete with self tapping screw and spigot sealing washer
Spare parts available
The Hypro EF3 Nozzle Caps fit the Hypro PROFLO range of nozzle bodies
NB:- The sizes are the nominal bore of the pipe not the outside diameter of the pipe (See “Technical Data Tab” for correct pipe to nozzle holder sizing)
- Manufacturer
Pentair Hypro
- Brand
Hypro
- Nozzle Holder Pipe Size
4223N-B522V 1/2″ 5 Way Body, 4223N-B523V 3/4″ 5 Way Body, 4223N-B524V 1″ 5 Way Body
| Nozzle Holder Pipe Size | Select an Option, 4223N-B522V 1/2" 5 Way Body, 4223N-B523V 3/4" 5 Way Body, 4223N-B524V 1" 5 Way Body |
|---|
