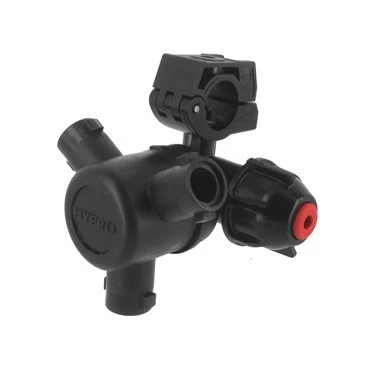

Hypro Proflo EF3 3 Way Nozzle Body, EPDM DCV

Hypro Proflo EF3 3 Way Nozzle Body, EPDM DCV

These nozzle holders come fitted with the RED coloured Diaphragm Check Valve and a BLACK coloured DCV rubber, that has a centre locating pip, rated at 0.55 Bar for instant shut off

These nozzle bodies are manufactured from Polyacetal and Nylon for performance and durability

 They all have hinged top Clamps to fit all common pipe sizes : 1/2″, 3/4″, 1″, nominal bore sprayline or pipe

20mm & 25mm also available

 They have a 10mm spigot, with an operating pressure of upto 20 bars

 They also come complete with self tapping screw and spigot sealing washer

 Spare parts available

 The Hypro EF3 Nozzle Caps fit the Hypro PROFLO range of nozzle bodies

NB:- The sizes are the nominal bore of the pipe not the outside diameter of the pipe (See “Technical Data Tab” for correct pipe to nozzle holder sizing)


• • Weight

    0.13 kgs

  • SKU

    4223N-B322

• Manufacturer

  Pentair Hypro

• Brand

  Hypro

• Nozzle Holder Pipe Size

  4223N-B322 1/2″ 3 Way Body, 4223N-B323 3/4″ 3 Way Body, 4223N-B324 1″ 3 Way Body, 4223N-B327 20mm 3 Way Body, 4223N-B328 25mm 3 Way Body
