Berthoud Fluid Control Valve 8009022

Berthoud Anti Drip Pressure Control Valve

These valves will fit all Berthoud Sprayers that have a standard nozzle assembly at the end of the lance with the 18mm male thread and nozzle cap

The valve works by staying closed and will not open until sufficient pressure (as listed below) has been reached to allow the valve to open. The valve will also shut off if the operating pressure drops below the pre-set pressures as below.

We have two versions of the valve available

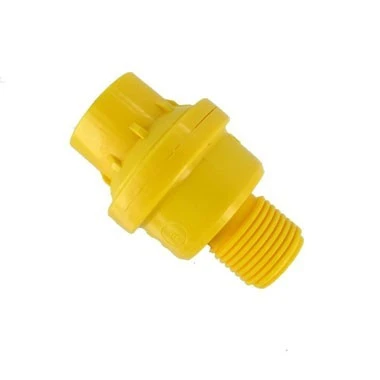

Yellow Valve 1 Bar Operation

Red Valve 1.5 Bar Operation

The yellow valve is supplied as standard with all Berthoud 2000 Pro Weed Control Sprayers

The Valves are preset and cannot be adjusted

This valve fits at the end of the lance, with the nozzle and nozzle cap attached to it.

The items being included are as follows

1 x Fluid Control Valve
1 x Sealing washer
1 x Filter

• • Weight

    0.07 kgs

  • SKU

    8009022Y

• Manufacturer

  Berthoud

• Brand

  Berthoud

• Valve size option

  Yellow 1Bar (15 Psi ) Valve, Red 1.5 Bar (21 Psi ) Valve, Blue 2 Bar (30 Psi), Green 3 Bar (43.5 Psi)
