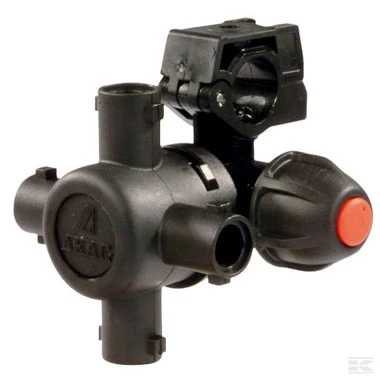

Arag Compact Jet 4 Way Nozzle Holder

Arag Compact Jet 4 way nozzle holders, are manufactuered with reduced dimensions to fit inside todays modern sprayer boom assemblies

A wide range of multi-nozzle holders all featuring internationally compatible bayonet action.

Available suit 1/2″, 3/4″ & 1″ NB pipe, and are also available to fit 20mm, 22mm, and 25 mm OD pipe sizes

Hinged clamp for rapid attachment

Off positions between every on position

Slotted spigot for complete boom draining improved flow dynamics.

Tested for impact resistance

Stainless steel fasteners

Max pressure 20 bars Both 10mm and 7mm spigot sizes available

Nozzle Holder Pipe Sizes

The sizes as listed refer to the Nominal Bore of the pipe and not the Outside Diameter. Please follow the sizing below to determine which size of nozzle holder you require. Please allow a tolerance, either direction of the sizes below, as some pipe sizes may vary slightly from the dimensions below.

Nozzle Holder Size To Fit Outside Diameter Pipe.

 1/2″ Nozzle Holder Will Fit 19 – 21mm Outside Diameter (Approx) Pipe

 3/4″ Nozzle Holder Will Fit 25 – 27mm Outside Diameter (Approx) Pipe

 1″ Nozzle Holder Will Fit 31 – 33mm Outside Diameter (Approx) Pipe



• • Weight

    0.25 kgs

  • SKU

    4064747

• Manufacturer

  Arag

• Brand

  Arag

• Nozzle Holder Pipe Size

  1/2” Nozzle Holder, 3/4” Nozzle Holder
