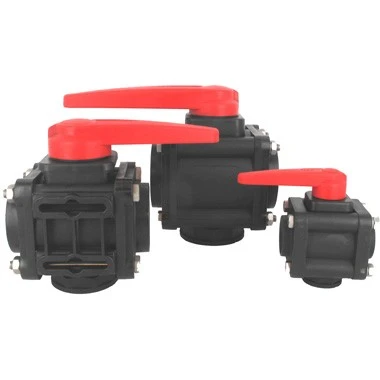

Arag 3 Way Bolted Ball Valves Female Thread 1″ – 3″ Sizes

Arag 3 Way Bolted Ball Valves Female Thread 1″ – 3″ Sizes

Commonly used for a wide variety of agricultural and industrial

applications, Hypro offer a wide range of ball valves, both manual and

electric. The Hypro range of valves are constructed from glass reinforced

polypropylene for strength, durability and excellent resistance to

agrochemicals and many industrial chemicals. All Hypro valves are

“full-bore” providing minimum flow restriction and minimum pressure loss

All sizes have bottom mounting as shown in the additional image.

The maximum pressure of each ball valve size are as below

Pressures are indicated as :- Bar (PSI)

1” BSP(F) 453024A44 16 (240)

11/4” BSP(F) 453024A55 16 (240)

11/2” BSP(F) 453025A66 10 (150)

2” BSP(F) 453026A77 10 (150)

2 1/2” BSP(F) 453027A88 8 (116)

3” BSP(F) 453027A99 8 (116)

 2” BSP(F) 56454137 10 (150)



• • Weight

    0.55 kgs

  • SKU

    453024A44

• Brand

  Arag

• Ball Valve Size

  1” Ball Valve 45302 4A44, 1 1/4” Ball Valve 45302 4A55, 1 1/2” Ball Valve 45302 5A66, 2” Ball Valve 45302 6A77, 2 1/2” Ball Valve 45302 7A88, 3” Ball Valve 45302 7A99
